Introducing Komline-Wyssmont TURBO-Dryer

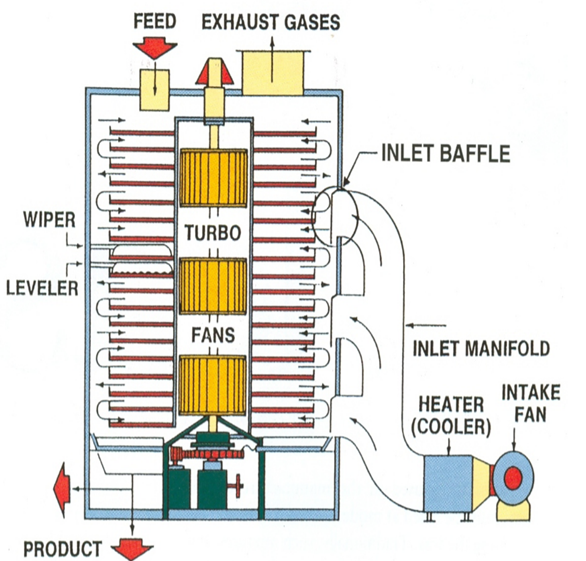

The TURBO-DRYER® consists of a stack of slowly rotating circular trays.
Material is fed onto the top tray.
After one revolution, the material is wiped onto the next lower tray, where it is mixed,
leveled, and wiped to the next tray after one revolution.
This process is repeated on each tray after one revolution.
They trays are contained in an enclosure in which heated air or gas is circulated.
This delivers very uniformly dried product because material is intermittently redistributed with plugflow operation. Because of the uniform inside temperature or zoned temperature regions, the turbo-dryer has the closest product temperature control of any dryer possible.
Material handled
Powders, pastes, crystals, sludges, granules, slurries,
beads, filter and centrifuge cakes, pellets, flakes
Unique features:
- Continuous automatic operation with little operator attention.
- Precisely controlled temperature and residence time.
- Easily adjusted and automatically maintained drying conditions.
- Automatically adjusts for varying feed rates.
- Can handle sticky products without backfeeding.
- Can operate with inert atmosphere recirculation with solvent recovery.
- Operates as a dryer, cooler, reactor, heat treater, calciner, humidifier, agglomerator, sublimer, roaster, in combination if required.
- Environmentally sealed, and explosion-proof models.
- The self-cleaning wiping action often eliminates the need for manual cleaning at product changeovers.
- Easy startup and operation.
- Low energy costs. Low labor costs.
- Low maintenance costs because of its unparalleled reliability.
- Can use any heating medium: steam, gas, electricity, oil, high temperature oil or waste gas from other operations.
- Low temperature drying as low as 60°F without vacuum.
- Drying or heat treating up to 1000°F.
- Available in laboratory sizes, package units, and large field erected sizes.
- Vertical construction. Little space requirements.
- Outdoor or indoor installations.
- Accurate scale-up from tests on a few pounds.
